Type interchangeable inserts
ref.typeinterchangeable
Rotating center for interchangeable sleeves / points / inserts.
• Concentricity guaranteed to 2 microns, can be more precise upon request
• In-house manufactured tapered roller bearings allow for a minimal bulk and self-adjustment both radially and axially
• Facilitates tool passage
• Machine taper N°3-5
• Various inserts to suit your needs
• Lifetime lubrication
- • Morse taper
- MT3 to MT4
- • Maximum revolutions per minute
- from 4000 to 5000
-
Product file
-
-
CAD file
-
Delivery Policy - 4 to 8 business days after payment receipt
Secure paiement : • Visa • MasterCard
Rotating center for interchangeable sleeves / points / inserts.
• Concentricity guaranteed to 2 microns, can be more precise upon request
• In-house manufactured tapered roller bearings allow for a minimal bulk and self-adjustment both radially and axially
• Facilitates tool passage
• Machine taper N°3-5
• Various inserts to suit your needs
• Lifetime lubrication
GE1645
Data sheet
- Morse taper
- MT3 to MT4
- Maximum revolutions per minute
- from 4000 to 5000
- Applications
- Inspection
Turning
Applications
Turning
Inspection

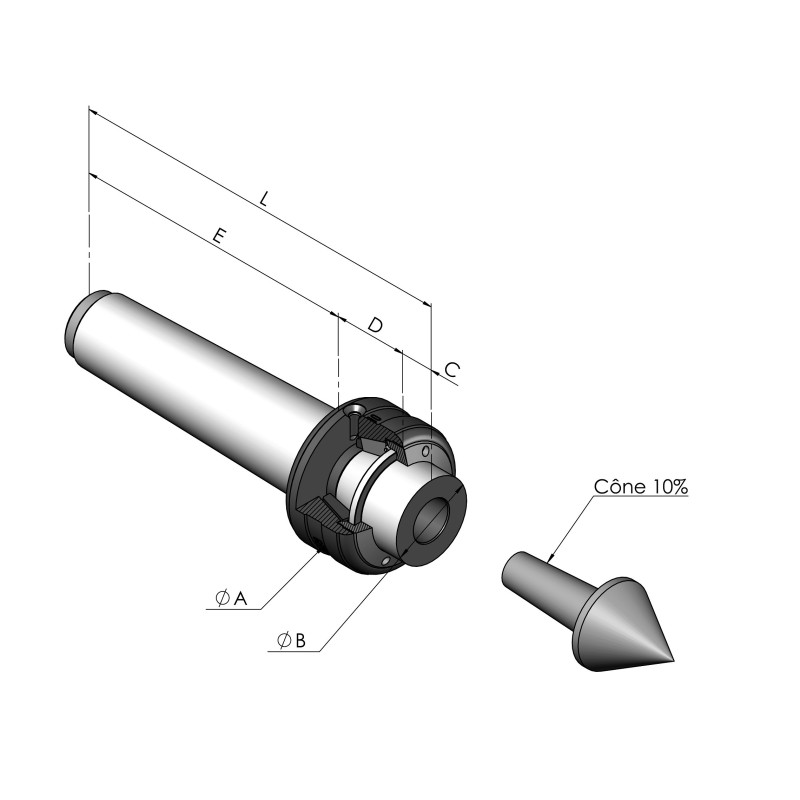

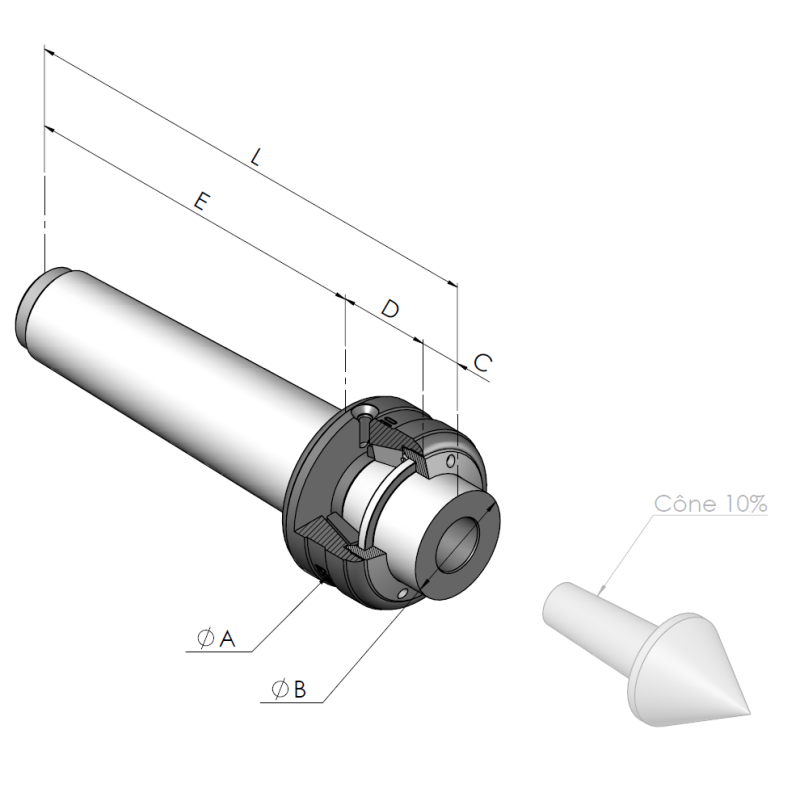

| Designation | Prix | Dimension | Maximum revolutions per minute | Axial load | Radial load | Concentricity less than mm | Diameter A | Diameter B | C | D | E | L | Diameter a | Diameter b | Diameter m | d |
|---|
live-center Type interchangeable inserts
| Reference | Price | Add to cart | Add to quote | Step | Dimension | Maximum revolutions per minute | Axial load | Radial load | Concentricity less than mm | Diameter A | Diameter B | C | D | E | L | Diameter a | Diameter b | Diameter m | d |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GE1645 | CHF534.00 | Morse N°3 | 5000 | 1100 | 350 | 0.002 | 40 | 24 | 9 | 24 | 85 | 118 | - | - | - | - | |||
| GE1630 | CHF614.00 | Morse N°4 | 4000 | 1400 | 500 | 0.002 | 49 | 31 | 10 | 28 | 108 | 146 | - | - | - | - | |||
| GE1708 | CHF769.00 | Morse N°5 | 3000 | 1800 | 700 | 0.002 | 60 | 40 | 12 | 33 | 136 | 181 |
